A4 Paper Automatic Paper Cutting Machine & Ream Wrapping Machine
Brand DONGTENG
Product origin Ruian Wenzhou City，Zhejiang Prov, China
A4 Paper Automatic Paper Cutting Machine & Ream Wrapping Machine is featured by
---high speed: max.220m/min
---high production capacity:10—12 reams/min
---small space required: 7m x 8m
---easy operation
---less labor power: only 3-4 men required
---low cost
A4 Paper Automatic Paper Cutting Machine & Ream Wrapping Machine(DTCP-A4-10):
Function: cutting & ream wrapping
Cut size: A4 (210mm*297mm)
Ream output speed：10—12 reams/min 2 rolls 2 pockets
Max. speed: 220m/min
Total power：28kw
DTCP-A4-10 A4 Paper Automatic Paper Cutting Machine & Ream Wrapping Machine
Brief Introduction:
Fully Automatic A4 Copy Paper Cut Size Sheeting & Wrapping Machine (DTCP-A4-10) is the best choice for the small capacity production or for the starter.
Drawing of function:

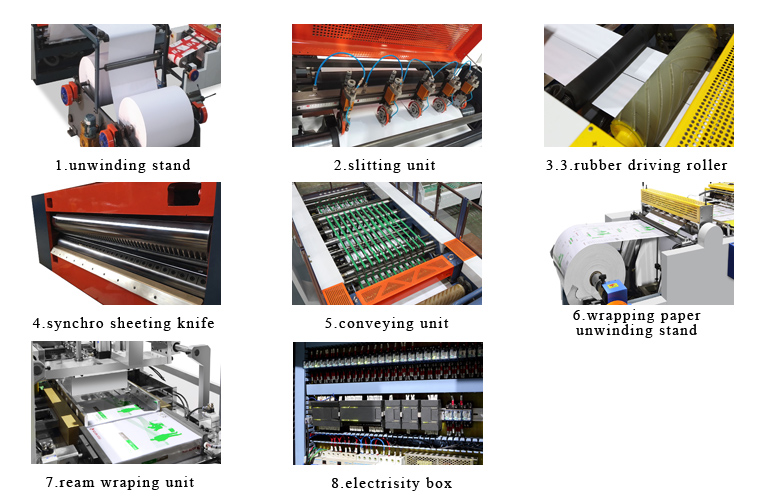

Advantages:
Parameter:
Model | DTCP-A4-10 | ||
Sheeting Unit | |||
Non-Shaft Unwind Reels | 2 | ||
Number of Pocket | 2 | ||
Max. Width of Paper Roll(mm) | 846 | ||
Net Cutting Width(mm) | 840 | ||
Diameter of Paper Roll(mm) | 400-1200 | ||
Diameter of Core Chuck(mm) | 3”(76.2mm) or 6”(152.4mm) | ||
Paper GSM(gsm) | 60-100 | ||
Length of Sheeted Paper (mm) | 297 | ||
Paper Quantity per Ream (pcs) | 0-500 | ||
Max. Ream Height(mm) | 65 | ||
Max. Designing Speed of Paper Running (m/min) | 200-250 | ||
Cutting Speed(times/min) | 850 | ||
Frequency of Ream Discharge (times/min) | 5-6 | ||
Working Speed of Paper Running (m/min)) | 250-300 | ||
Working Cutting Speed (times/min) | 1010 | ||
output speed(pack / min) | 10-12 | ||
Max. Knife Loading(gsm) | 400 | ||
Paper Cutting Accuracy(mm) | ±0.2 | ||
Requirement for Paper Reel | 1.The running speed is stable. | ||
transmission | AC frequency conversion, stepless speed regulation | ||
Main power | 380v/50Hz Three phase four wire | ||
Control voltage | 220V AC/22V DC | ||
Total power(Kw) | 12 | ||
Air Consumption (NL/min) | 300 | ||
Pneumatic Pressure(bar) | 0.6-0.8 | ||
Overall Dimension(m) (LxWx H) | 7.8x6.6x1.8 | ||
Weight （T） | 12 | ||
Wrapping Unit | |||
Production Efficiency(reams/min) | 10-12 | ||
Automatic Transverse Cutting and Feeding | 10-12 | ||
Specification of Packed Object (mm)(based on height 500 pcs of copier paper) | 210×297×50 | ||
Power Supply | 380V 50HZ Three phase four wire | ||
Motor Power(Kw) | 5.1 | ||
Gluing Power(Kw) | 2.25 | ||
Compressed Air(mpa) | 0.6-0.8 | ||
Overwrapping Paper Size(mm)(LW) | 550-560×386 | ||
Overall Dimension(mm) (LxWx H) | 3400x3300x1600 | ||
Weight （T） | 1.5 | ||
