Automatic Carton Packing Machine
Brand DONGTENG
Product origin Ruian Wenzhou City，Zhejiang Prov, China
Automatic Carton Packing Machine featured by 1.Automatic and efficient, less time & less Labor Cost;2.Suitable for various sizes of copy paper, such as A4 and A3 share one set machine，Letter Size, Legal Size etc. Special size are customer made;3.Suitable for Various package demand, such as 10 reams/carton, 8 reams/carton, 6 reams/carton, 5 reams/carton and 4 reams/carton;4.Protection from jam;5.It can be linked with any brand of cut-size sheet er & ream wrapping machine, such as E.C.H WILL, LINOMATIC
Automatic Carton Packing Machine(DTFP-10)
Used to pack the paper reams into carton automatically
speed: 7-8 carton /min
Suitable for A3, A4, legal size, letter size etc.
10 reams/carton, 8 reams/carton, 5 reams/carton. 4 reams/carton
Brief Introduction:

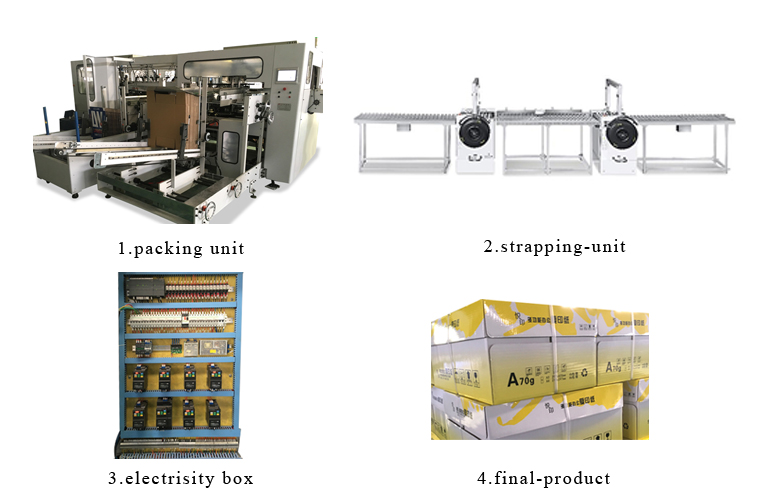

Automatic Carton Packing Machine is specially designed for carton packing of the copy paper. The machine is usually linked with the cut-size sheeting & ream packing machine. It accum/stacks the reams automatically while the carton folding. Both bottom and lid are glued by hot-melt adhesive. Then the carton go through two sets of strapping machines for tying. The inkjet printer and label applicator are optional units
Advantages:
Working procedure
Main Technical Specification:
MODEL | DTEP-10 |
Suitable ream size | A4 and A3 share one set machine Letter Size, Legal Size |
Suitable Package (reams/carton) | 4，5，6，8，10 |
Design Speed (cartons/min) | 18 |
Working Sped (cartons/min) | 6--8 |
Glue | Hot-melt glue |
Compressed Air | 0.8MPA |
PP belt size | 9mm wide，0.8mm thick（standard）或12mm（custom-made） |
Tie direction | Lengthways 1pc ,crosswise 1 pc |
Electricity consumption (Kw) | 15 |
Overall Size (m)（LxWxH） | 15*5.5*2.2 |
Machine weight (MT) | 8 |
