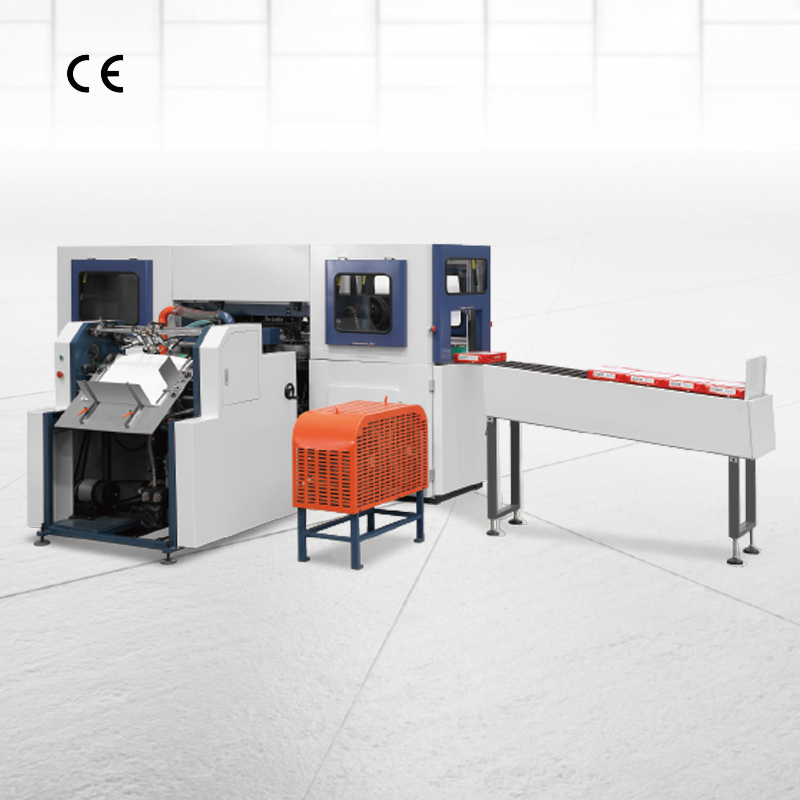

Automatic A4 Paper Ream Packing Machine
Brand DONGTENG
Product origin Ruian Wenzhou City，Zhejiang Prov, China
Automatic A4 Paper Ream Packing Machine:
Reasonable structure, higher efficiency, more convenient operation, and stronger sealing ability;Performance meets international standards.
Automatic A4 Paper Ream Packing Machine is suitable for packaging A4 copy paper (210 × 297mm). More models such as A3 (297mm x 420mm), A5 (210mm x 149mm), legal size (216mm x 356mm), and letter size (216mm x 279mm) can be customized.
Product Details/summary:
1. Adopting multi-functional digital display stepless speed regulation and PLC control.
2. Equipped with a touch screen to achieve a human-machine interface.
3. Automatic cross cutting and feeding of web paper.
4. Ordinary color printing paper, high-end color printing paper, and laminated paper can all be used as outer packaging paper.
5. Equipped with advanced automatic glue spraying system.
6. Reasonable structure, higher efficiency, more convenient operation, and stronger sealing ability.
7. Performance meets international standards.
Technical parameter:
Model | DTDP-A4-20 |
Packaging paper feeding method | Single sheet feeding |
Packaging paper size (mm) (LxW) | 210x297 |
Packaging speed (rpm) | 18-20 Affected by paper quality, worker experience, etc. |
Material height (mm) | 30-60 |
Packaging paper weight (gsm) | 90-120 |
Packaging paper material: | Copper coated paper (flat, no curve) |
Packaging paper size (mm) (LxW) | 550-560x386 |
Main power supply | 220V AC/220V DC |
Total power | 5.5 |
Gluing machine power | 2.25 |
Compressed air pressure (Mpa) | 0.6-0.8 |
Overall dimensions (m) (LxWxH) | 3.9x4.5x1.45 |
Weight (metric tons) | 2 |
