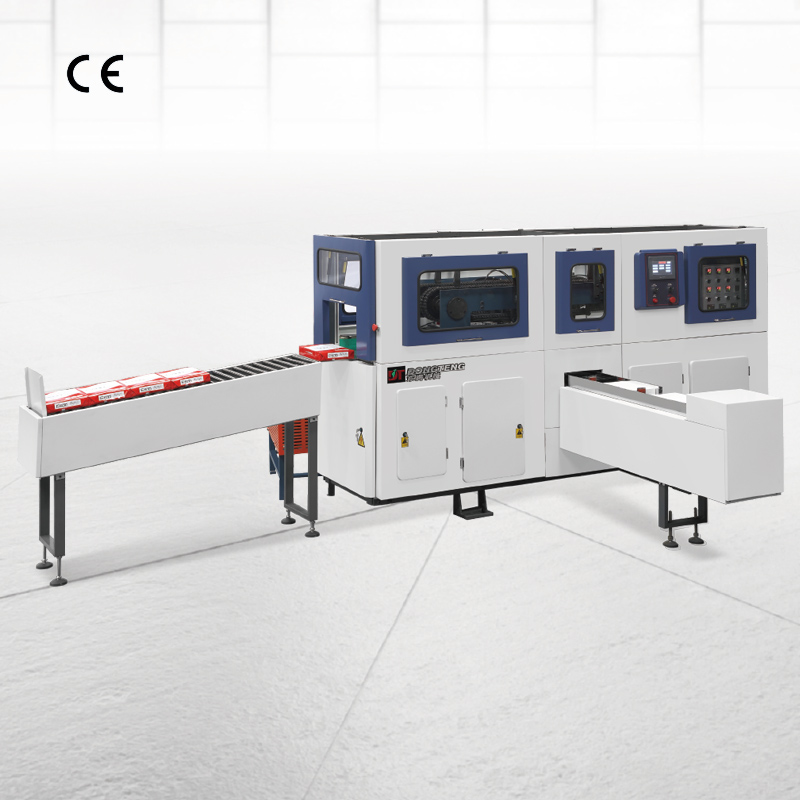

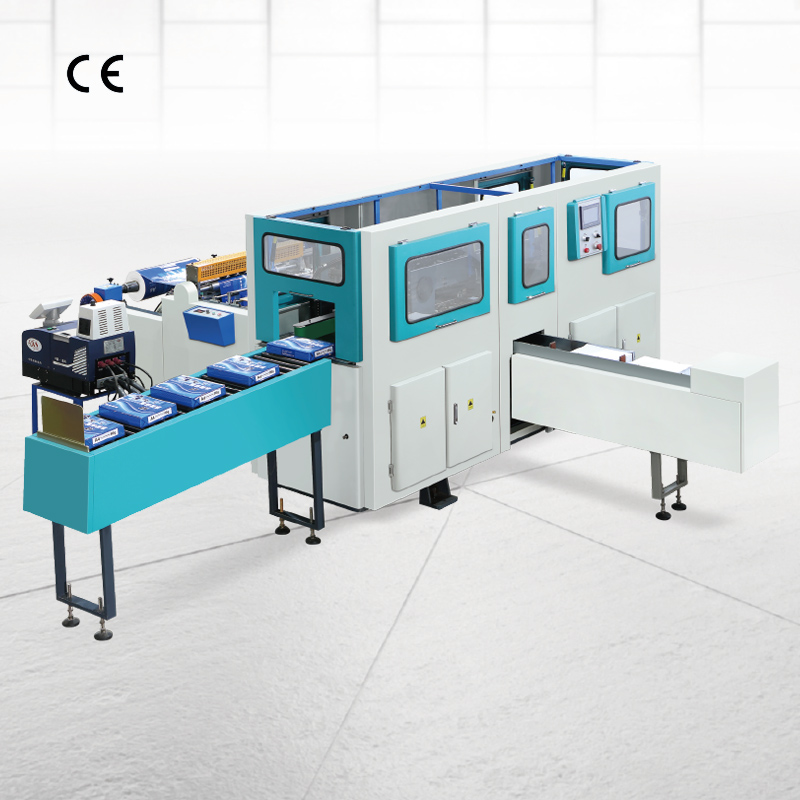

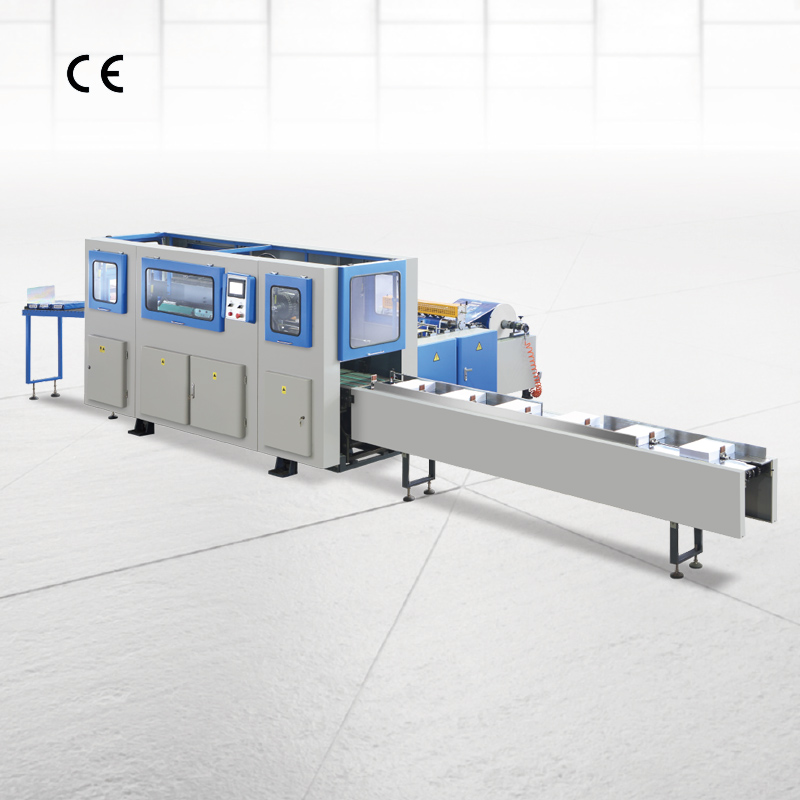

Automatic A4 Copy Paper Ream Wrapping Machine
Brand DONGTENG
Product origin Ruian Wenzhou City，Zhejiang Prov, China
Automatic A4 Copy Paper Ream Wrapping Machine Characteristics:
1. Adopt multi-functional digit-display stepless speed regulation, PLC control.
2. Equipped with touch screen, realizing man-machine interface.
3. Automatic transverse cutting and feeding of roll over wrapping paper.
4. Both common color printing paper, top grade color printing paper and film laminated paper can be used as outer over wrapping paper.
5. Advanced automatic gluing spraying system is equipped.
6. Reasonable structure, higher efficiency, easier operation and increased sealing capacity.
7. Performance reaches up to international standard.
Automatic A4 Copy Paper Ream Wrapping Machine
Used to pack the A4 sheets (500pcs) by printed paper
Optional: wrapping material: plastic film (customized)
Wrapping material in roll
Speed: DTCP-A4-10: 8—10 reams/min, DTCP-A4-20: 16—20 reams/min<br>
Use separately, linked with cutting machine (customized)<br>
Ream wrapping machine for legal size, letter size A3 size customized made
Application of A4 Copier Paper Ream Wrapping Machine:
The A4 Copier Paper Ream Wrapping Machine is suitable for packing A4 copy sheets (210×297mm). More models,such as A3(297mm x 420mm),A5 (210mm x149mm),legal size (216mm x 356mm), letter size (216mm x 279mm), are available for customized.
Advantage
1.The overwrapping paper is web feeding, keeping the feeding smooth
2.Tight package, accurate position and good appearance.
3.wrap by film(optional)
Parameter:
Model | DTDP-A4-10 | DTDP-A4-20 |
Production speed (bag / min) | 8-10 | 16-20 |
Production speed (bag / min) | 8-10 | 16-20 |
Packaging size (mm) | 210×297×50（based on the height 500 pieces of copier paper） | |
power supply | 380v/50Hz 3 phases 4 wires | |
Main motor power (Kw) | 5.5 | 6.5 |
Glue Power (Kw) | 2.25 | 2.25 |
Compressed air (Mpa) | 0.6Mpa | 0.6Mpa |
Outsourcing paper size (length x width) (mm) | 550-560mm×386mm | |
Dimensions (L x W x H) (mm) | 4030x3050x1450 | 4530×3050×1450 |
Weight (tons) | 1.5 | |
